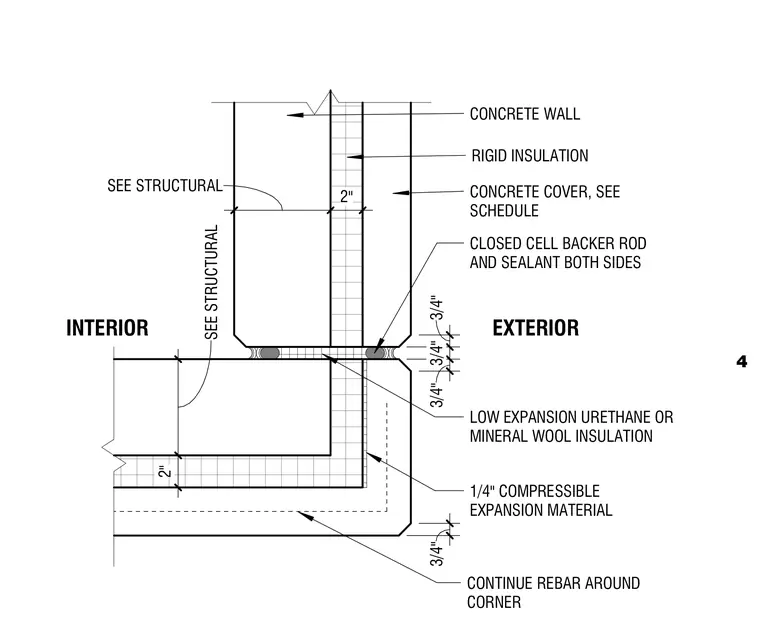

This concrete tilt-up wall outside corner assembly incorporates rigid insulation and a continuous rebar layout that wraps around the corner. The joint features a closed-cell backer rod with sealant on both sides, complemented by low-expansion urethane or mineral wool insulation and a quarter-inch compressible expansion material. Concrete cover dimensions are referenced to the structural schedule, maintaining standard clearances.
INTERIOR EXTERIOR SEE STRUCTURAL 2" SEE STRUCTURAL 2" 3/4" 3/4" 3/4" 3/4" CONCRETE WALL CONCRETE COVER, SEE SCHEDULE RIGID INSULATION CLOSED CELL BACKER ROD AND SEALANT BOTH SIDES CONTINUE REBAR AROUND CORNER LOW EXPANSION URETHANE OR MINERAL WOOL INSULATION 1/4" COMPRESSIBLE EXPANSION MATERIAL 4
