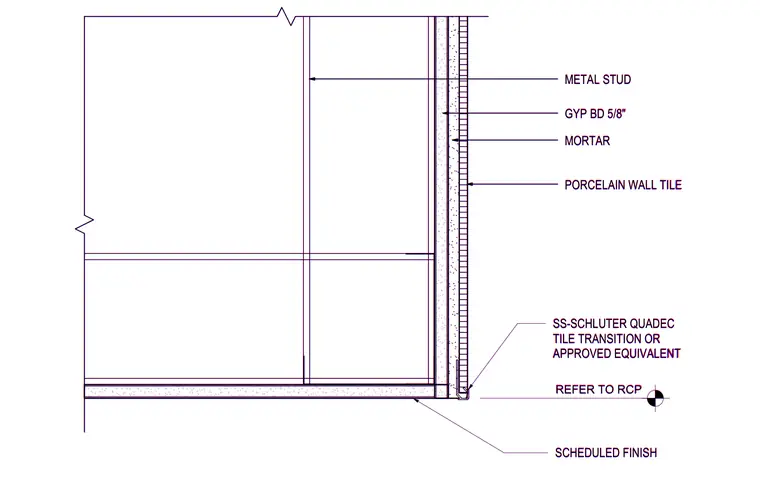

This wall and ceiling intersection consists of cold-formed metal studs faced with five-eighths inch gypsum board, set behind a mortar bed and porcelain wall tile finish. The ceiling soffit carries a scheduled finish and meets the wall at a stainless steel Schluter Quadec tile transition profile. The reflected ceiling plan dictates the precise alignment and dimensional layout of the junction.
REFER TO RCP METAL STUD GYP BD 5/8" PORCELAIN WALL TILE MORTAR SCHEDULED FINISH SS-SCHLUTER QUADEC TILE TRANSITION OR APPROVED EQUIVALENT REFER TO RCP METAL STUD GYP BD 5/8" PORCELAIN WALL TILE MORTAR SCHEDULED FINISH SS-SCHLUTER QUADEC TILE TRANSITION OR APPROVED EQUIVALENT
