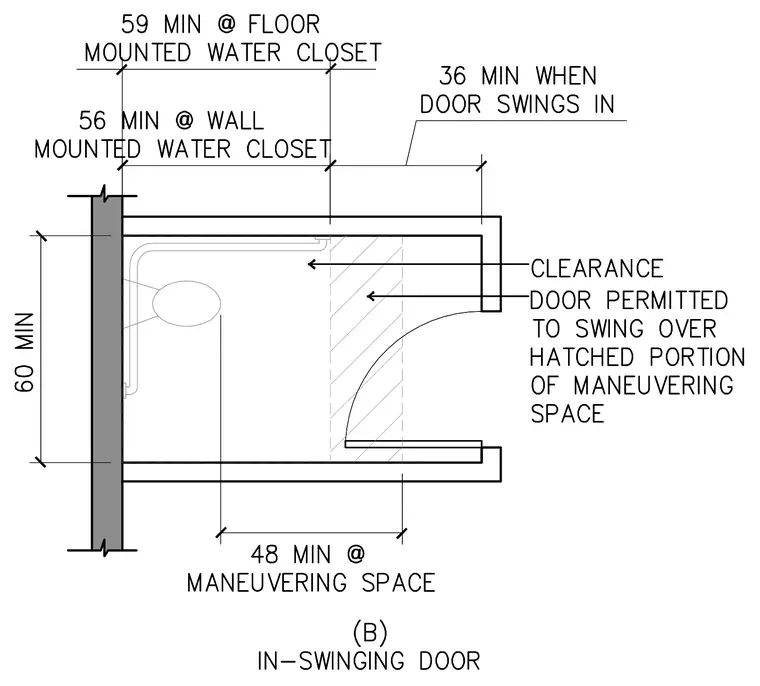

This plan detail establishes the minimum accessibility dimensions and maneuvering clearances for a toilet compartment served by an in-swinging door. The layout requires a minimum width of sixty inches between walls and a forty-eight-inch minimum maneuvering space length. For a floor-mounted water closet, a minimum depth of fifty-nine inches is required from the back wall, while a wall-mounted water closet requires fifty-six inches. A clear depth of thirty-six inches is specified when the door swings into the compartment. The door swing is permitted to overlap the hatched portion of the required maneuvering space.
