Architectural · A-27MNX

Roof Fall Protection Bracket Attachment

Materials

Concrete Steel Glass / Glazing Metal (misc.)Membrane / Roofing

Elements

Columns Roofs Decks Waterproofing / Flashing Insulation Anchors / Embeds

About this detail

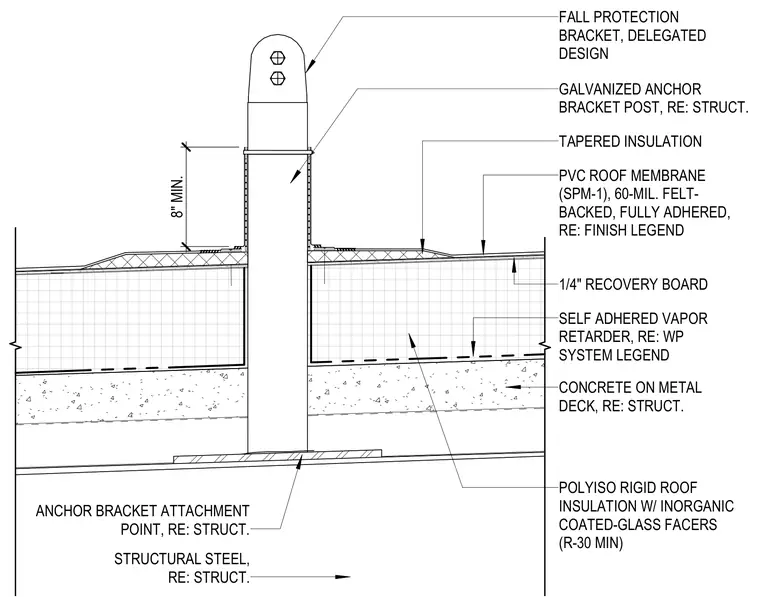

A galvanized anchor bracket post penetrates through a built-up roof assembly and mounts to structural steel beneath an eight-inch minimum concrete on metal deck. The roof assembly consists of a self-adhered vapor retarder, polyisocyanurate rigid roof insulation with inorganic coated-glass facers providing a minimum R-30 rating, a one-quarter-inch recovery board, and a sixty-mil felt-backed fully adhered PVC roof membrane. Tapered insulation surrounds the bracket penetration to maintain positive drainage toward roof drains. A delegated design fall protection bracket attaches to the top of the galvanized post.
