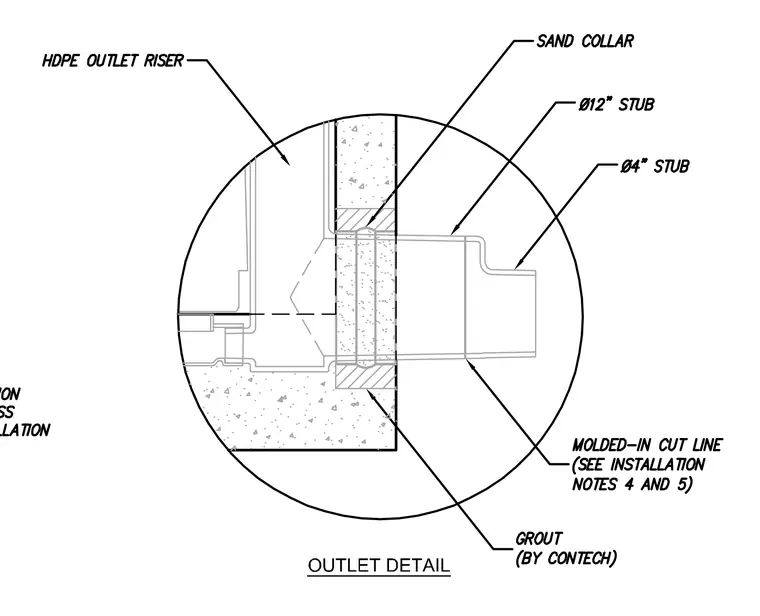

An HDPE outlet riser connects to a pipe stub through a concrete or composite wall assembly with a sand collar and grout by Contech. A twelve-inch stub and a four-inch stub penetrate the wall assembly with a molded-in cut line detailed per installation notes four and five.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
