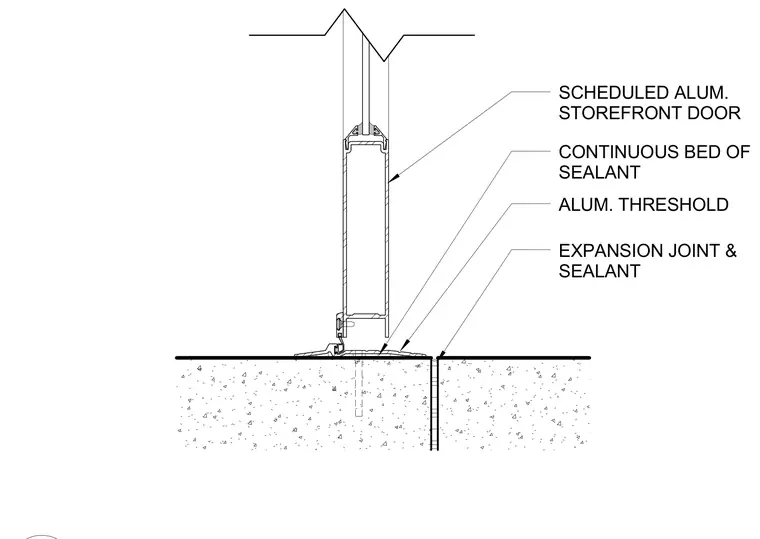

The scheduled aluminum storefront door rests upon an aluminum threshold set into a continuous bed of sealant over a concrete slab. An expansion joint with sealant is integrated adjacent to the threshold assembly to accommodate movement.
SCHEDULED ALUM. STOREFRONT DOOR CONTINUOUS BED OF SEALANT ALUM. THRESHOLD EXPANSION JOINT & SEALANT
