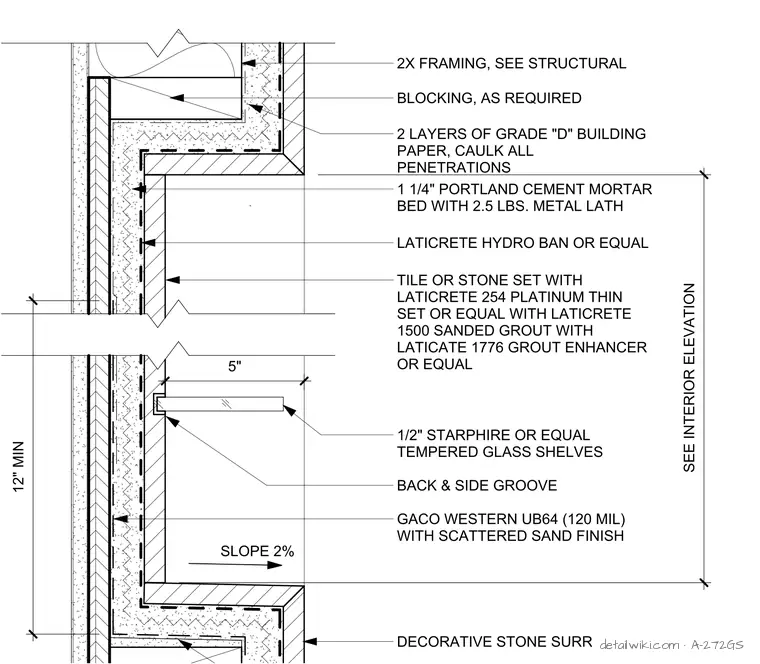

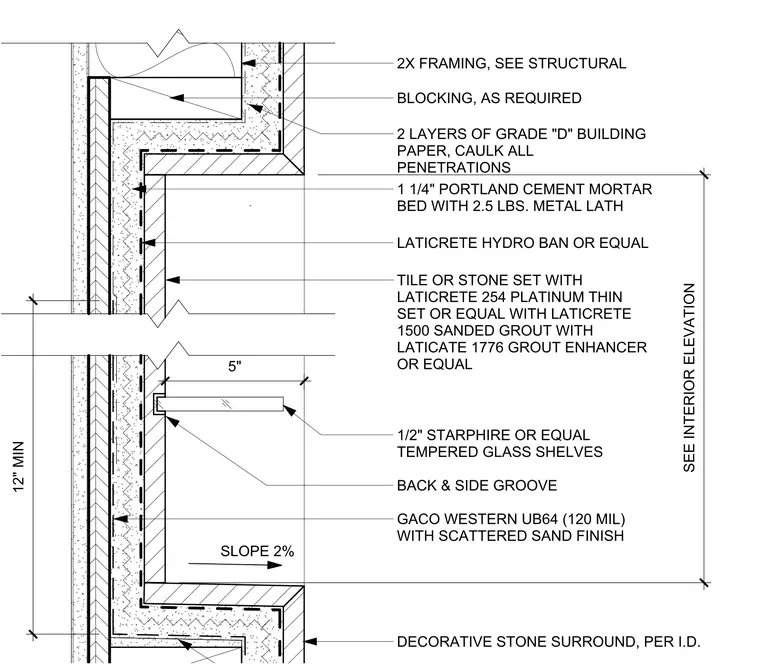

The assembly is framed with two-by lumber and required blocking, protected by two layers of Grade D building paper with all penetrations caulked. A 1 1/4-inch Portland cement mortar bed is reinforced with 2.5-pound metal lath and finished with a Laticrete Hydro Ban or equal waterproofing membrane. The niche base is sloped at 2 percent and finished with Gaco Western UB64 120-mil membrane with a scattered sand finish. Tile or stone is set using Laticrete 254 Platinum thin-set with Laticrete 1500 sanded grout and 1776 grout enhancer. Tempered glass shelves, either 3/8-inch or 1/2-inch Starphire, are installed into back and side grooves, with a decorative stone surround specified per interior design.
Text on the drawing
MORTAR BED AS REQUIRED TILE OR STONE SET WITH LATICRETE 254 PLATINUM THIN SET OR EQUAL WITH LATICRETE 1500 SANDED GROUT WITH LATICATE 1776 GACO WESTERN UB64 (120 3/8" STARPHIRE GLASS OR 1/2" STARPHIRE OR EQUAL TEMPERED GLASS SHELVES BACK & SIDE GROOVE DECORATIVE STONE SURROUND, PER I.D. SLOPE 2% 2 LAYERS OF GRADE "D" BUILDING PAPER, CAULK ALL PENETRATIONS 2X FRAMING, SEE STRUCTURAL TILE OR STONE SET WITH LATICRETE 254 PLATINUM THIN SET OR EQUAL WITH LATICRETE 1500 SANDED GROUT WITH LATICATE 1776 GROUT ENHANCER OR EQUAL 1 1/4" PORTLAND CEMENT MORTAR BED WITH 2.5 LBS. METAL LATH LATICRETE HYDRO BAN OR EQUAL GACO WESTERN UB64 (120 MIL) WITH SCATTERED SAND FINISH 12" MIN BLOCKING, AS REQUIRED SEE INTERIOR ELEVATION 5" SHOWER / TUB TRANSITION SCALE: 3" = 1'-0" SHOWER BENCH / DRAIN DETAIL 7
