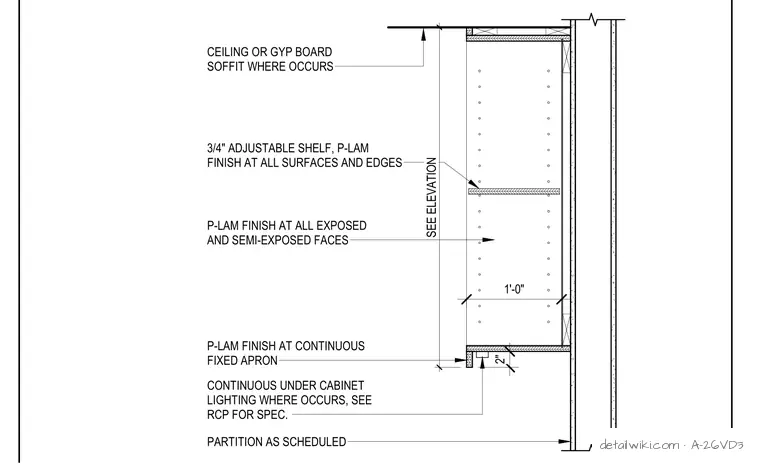

This wall-mounted upper cabinet assembly is anchored to a partition as scheduled. The cabinet interior features three-quarter-inch adjustable shelves with plastic laminate finish on all surfaces and edges. All exposed and semi-exposed faces receive a plastic laminate finish. A continuous fixed apron is located at the bottom of the cabinet, which also accommodates continuous under-cabinet lighting where specified on the reflected ceiling plan. The cabinet is positioned relative to the ceiling or gypsum board soffit above.
