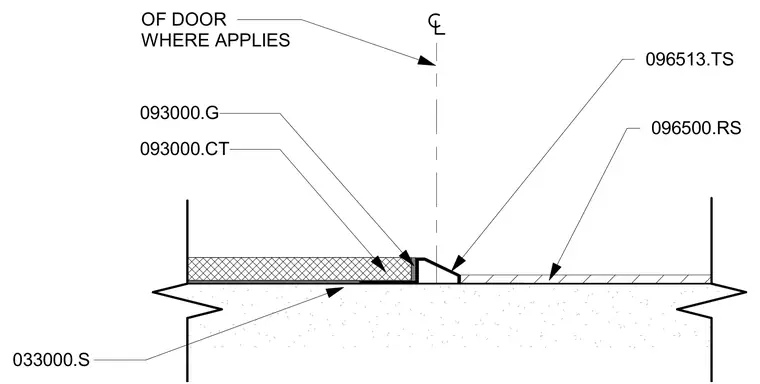

A ceramic tile finish with grout and setting bed meets a resilient sheet flooring installation over a concrete substrate. A transition strip bridges the junction along the door centerline where applicable. Material specifications include concrete substrate 033000.S, resilient sheet flooring 096500.RS, resilient tile transition 096513.TS, ceramic tile 093000.CT, and grout 093000.G.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
