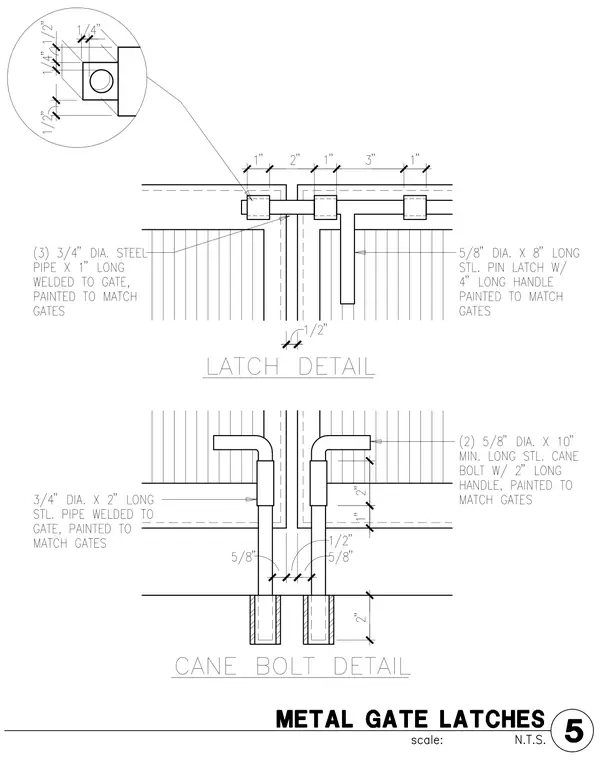

Metal gate hardware installation featuring a slide pin latch and cane bolt layout for double gates. The upper detail shows a slide pin latch with a 5/8-inch diameter by 8-inch long steel pin latch featuring a 4-inch long handle, guided by three 3/4-inch diameter by 1-inch long steel pipes welded to the gate and painted to match. The lower detail shows two 5/8-inch diameter by 10-inch minimum length steel cane bolts with 2-inch long handles dropping into floor sleeves, guided by 3/4-inch diameter by 2-inch long steel pipes welded to the gate. All components are painted to match the gates, with specified spacing and clearances including a 1/2-inch gap between gate leaves.
