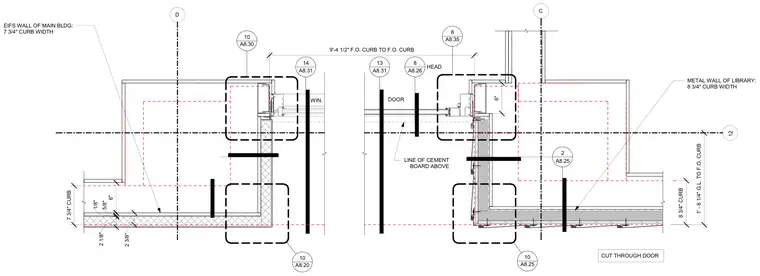

A door and window opening is framed between an EIFS wall assembly of the main building and a metal wall of the library. The layout references grid lines C and D with a face-of-curb to face-of-curb dimension of 9 feet 4 and 1/2 inches. The EIFS wall features a 7 and 3/4 inch curb width, while the metal wall opposite incorporates an 8 and 3/4 inch curb width. Additional annotations note the line of cement board above, specific offset dimensions, and multiple detail reference callouts.
CUT THROUGH DOOR 1' - 6 1/4" G.L. TO F.O. CURB 8 3/4" CURB 7 3/4" CURB 5/8" LINE OF CEMENT BOARD ABOVE 9'-4 1/2" F.O. CURB TO F.O. CURB METAL WALL OF LIBRARY: 8 3/4" CURB WIDTH EIFS WALL OF MAIN BLDG: 7 3/4" CURB WIDTH __________ A8.25 10 __________ A8.20 10 6" D C 12 1/8" 2 1/8" 6" 2 3/8" __________ A8.35 8 __________ A8.30 10 DOOR WIN. 14 A8.31 __________ 13 A8.31 __________ 2 A8.25 __________ 8 A8.26 __________ HEAD
