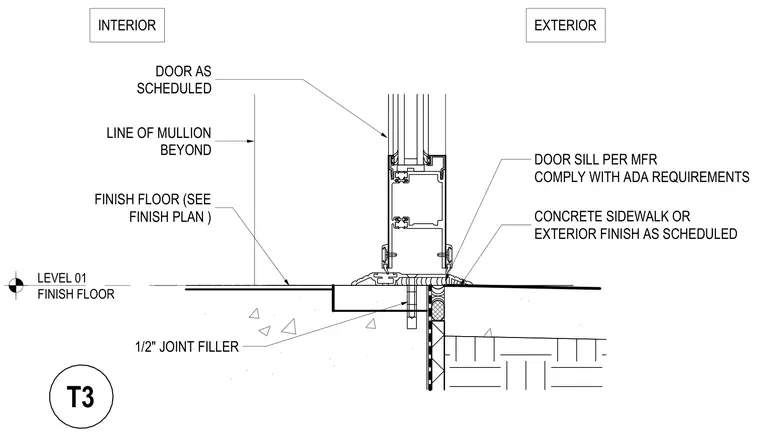

The exterior door sill is installed per manufacturer instructions to comply with ADA requirements at the building threshold. An interior finish floor level 01 transitions at the interior side, while a concrete sidewalk or exterior finish as scheduled meets the exterior side. A one-half-inch joint filler is placed below the sill adjacent to the exterior paving and subgrade.
CONCRETE SIDEWALK OR EXTERIOR FINISH AS SCHEDULED DOOR AS SCHEDULED FINISH FLOOR (SEE FINISH PLAN ) 1/2" JOINT FILLER EXTERIOR INTERIOR DOOR SILL PER MFR COMPLY WITH ADA REQUIREMENTS LINE OF MULLION BEYOND LEVEL 01 FINISH FLOOR T3
