Keg Cooler Door and Wall Junction Detail

Materials

Steel Stainless Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Walls Partitions Doors Storefronts Facades / Cladding

About this detail

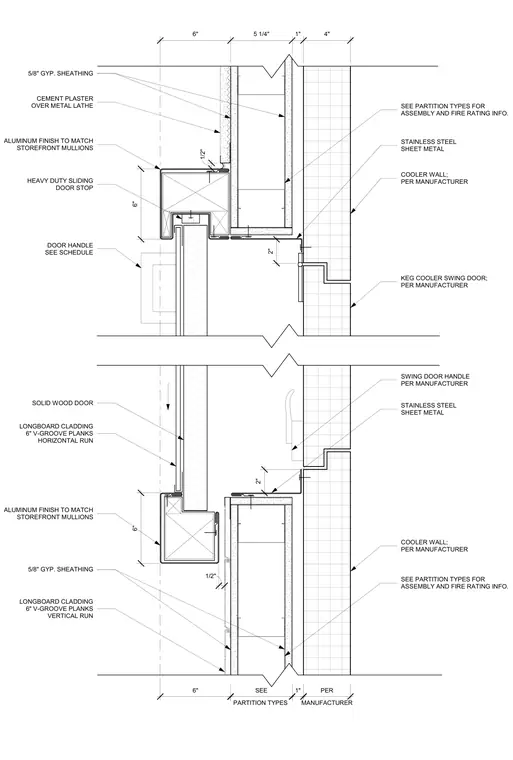

A keg cooler enclosure meets a framed partition wall finished with gypsum sheathing, cement plaster over metal lath, and Longboard 6-inch V-groove planks running horizontally and vertically at this wall and door junction. The assembly incorporates a solid wood door flanked by aluminum storefront mullions matching an adjacent finish, a heavy-duty sliding door stop, and a door handle per schedule. A keg cooler swing door is framed against cooler walls provided per manufacturer, trimmed with stainless steel sheet metal angles at the transitions. Partition types govern the core framing, assembly, and fire rating requirements.
