Detail at Display Case Adjustable Shelf

Materials

Elements

About this detail

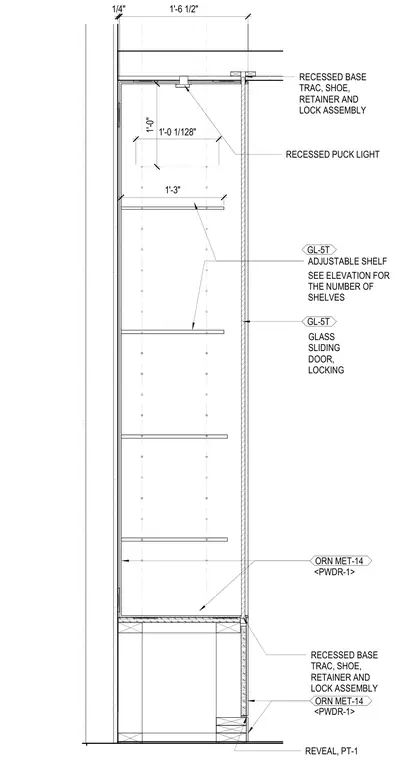

The display case assembly incorporates adjustable GL-5T glass shelves supported within a framework of ornamental metal designated as ORN MET-14 with a powder coat finish of PWDR-1. Locking glass sliding doors secure the front enclosure, while a recessed puck light illuminates the upper interior. The head and base assemblies feature recessed tracks, shoes, retainers, and lock mechanisms, framed by a painted PT-1 reveal at the lower base.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
