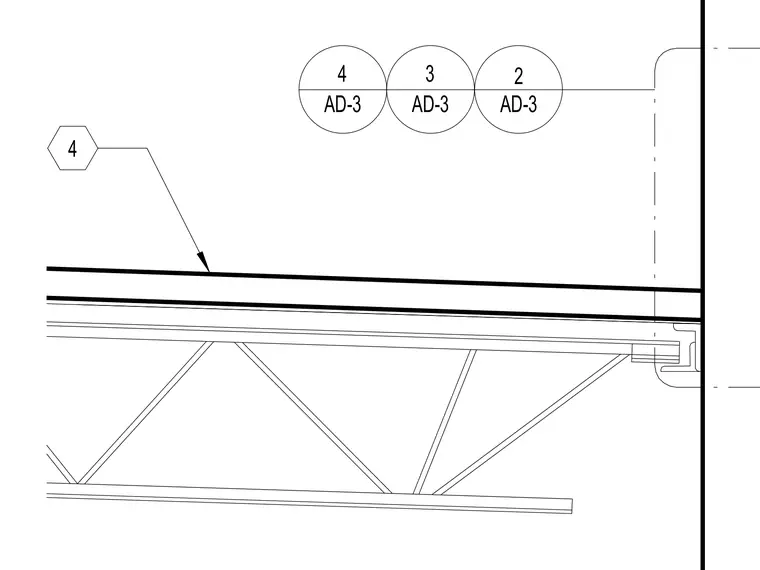

An open web steel joist bears onto a structural support at an exterior wall junction. The assembly includes horizontal framing members and detail reference callouts indicating coordination with sheet AD-3.
