Sign Post Foundation and Mounting Detail

Materials

Concrete Steel Masonry / CMU Glass / Glazing

Elements

Columns Walls Foundations / Footings Expansion / Control Joints Site / Paving

About this detail

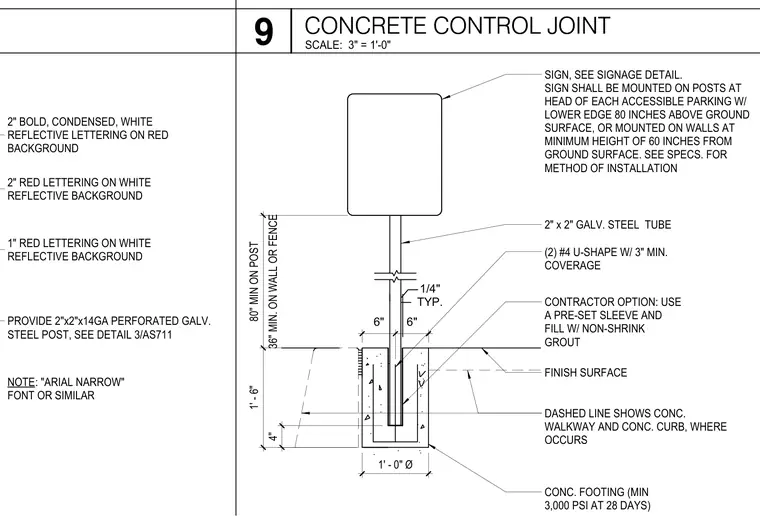

A sign mounting assembly is supported by a 2"x2" galvanized steel tube embedded in a concrete footing. The structural foundation consists of a concrete footing with a minimum compressive strength of 3,000 PSI at 28 days, reinforced with two #4 U-shaped reinforcing bars providing a minimum of 3 inches of concrete coverage. Contractors have the option to use a pre-set sleeve filled with non-shrink grout. The sign is positioned with a minimum clearance of 80 inches above the ground surface for posts at accessible parking heads. Dashed lines indicate the position of adjacent concrete walkways and curbs where applicable.
