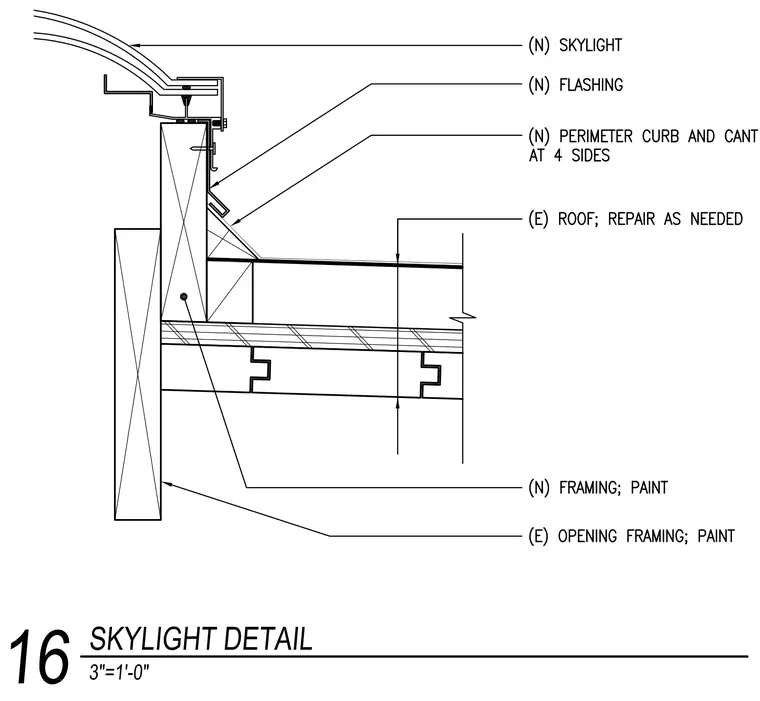

A new skylight rests on a new perimeter wood curb and cant provided at four sides, secured above new framing. New metal flashing protects the curb junction above the existing roof, which is designated for repair as needed. Existing opening framing and new framing members are specified to be painted.
