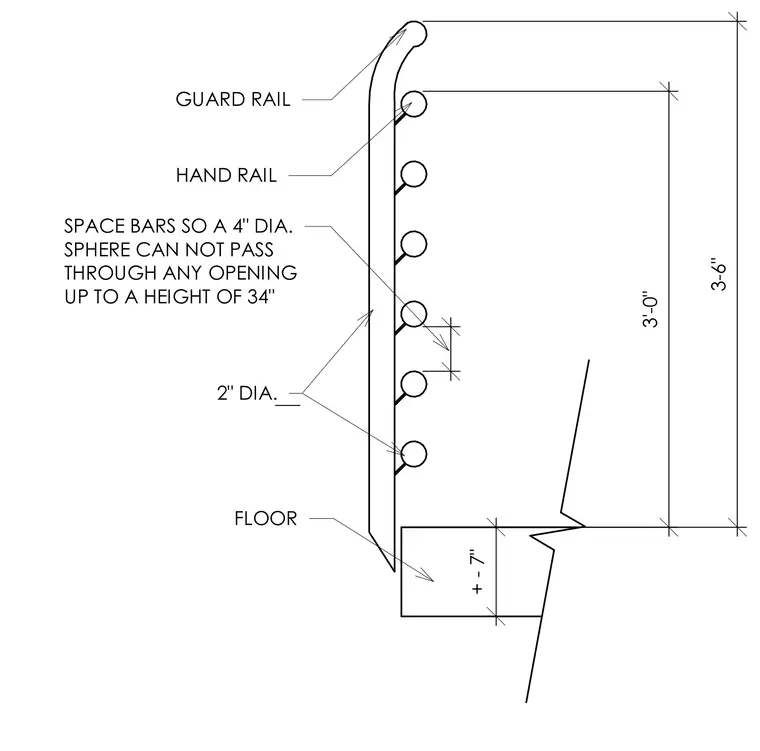

A guardrail and handrail assembly is anchored adjacent to a floor slab, featuring a two-inch diameter top guard rail and intermediate handrails. Intermediate bars are spaced so a four-inch diameter sphere cannot pass through any opening up to a height of thirty-four inches. The total guard rail height is three feet six inches above the floor level.
3-6" 3'-0" + - 7" FLOOR 2" DIA. HAND RAIL GUARD RAIL SPACE BARS SO A 4" DIA. SPHERE CAN NOT PASS THROUGH ANY OPENING UP TO A HEIGHT OF 34"
