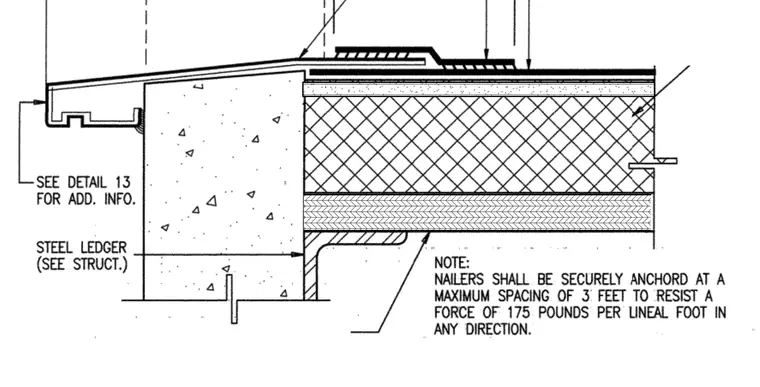

A roof membrane extends over a concrete wall and down through a scupper opening, with a steel ledger providing structural support below. Wood nailers are securely anchored at a maximum spacing of three feet to resist a force of one hundred seventy-five pounds per lineal foot in any direction. Additional information for the scupper condition is referenced on Detail 13.
