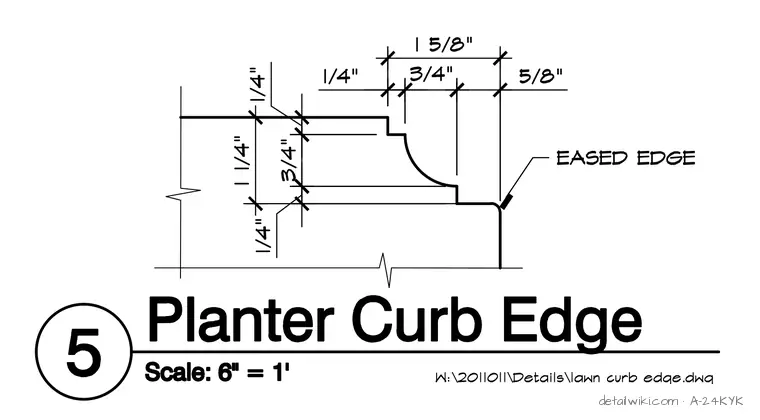

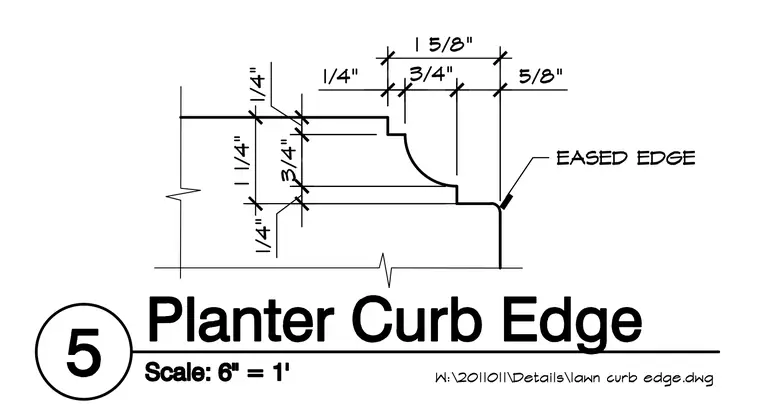

A stepped profile with a cove transition and an eased edge forms the concrete planter curb edge. Dimensions indicate a one and one-quarter inch top vertical drop, a three-quarter inch vertical cove radius section, and a lower vertical face with an eased edge. Horizontal dimensions specify a one-quarter inch setback, a three-quarter inch cove width, and a five-eighths inch outer extension. Dimension strings for height and width clearances are included.
