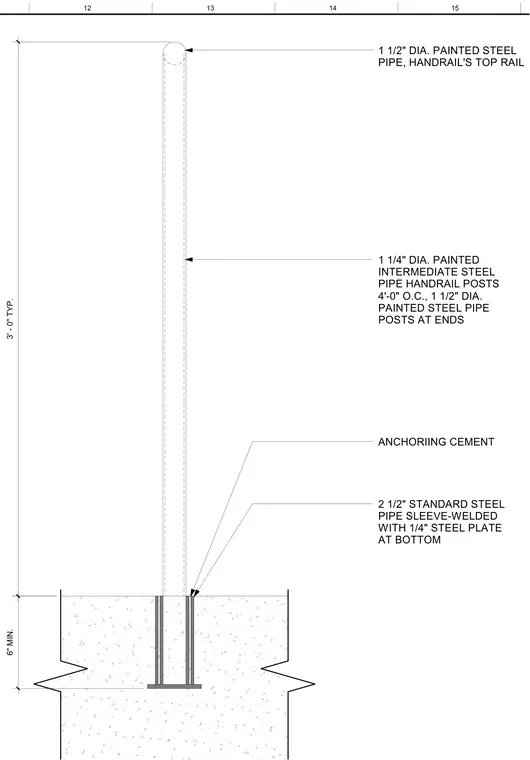

This enlarged handrail section details a 1 1/2-inch diameter painted steel pipe top rail supported by 1 1/4-inch diameter painted intermediate steel pipe posts spaced at four feet on center, with 1 1/2-inch diameter painted steel pipe posts at the ends. The posts insert into a 2 1/2-inch standard steel pipe sleeve that is welded with a 1/4-inch steel plate at the bottom. The assembly is secured with anchoring cement set within a concrete structural element, maintaining a minimum depth of 6 inches and a standard height of 3 feet zero inches.
6" MIN. 3' - 0" TYP. 2 1/2" STANDARD STEEL PIPE SLEEVE-WELDED WITH 1/4" STEEL PLATE AT BOTTOM ANCHORIING CEMENT 1 1/4" DIA. PAINTED INTERMEDIATE STEEL PIPE HANDRAIL POSTS 4'-0" O.C., 1 1/2" DIA. PAINTED STEEL PIPE POSTS AT ENDS 1 1/2" DIA. PAINTED STEEL PIPE, HANDRAIL'S TOP RAIL 13 12 14 15
