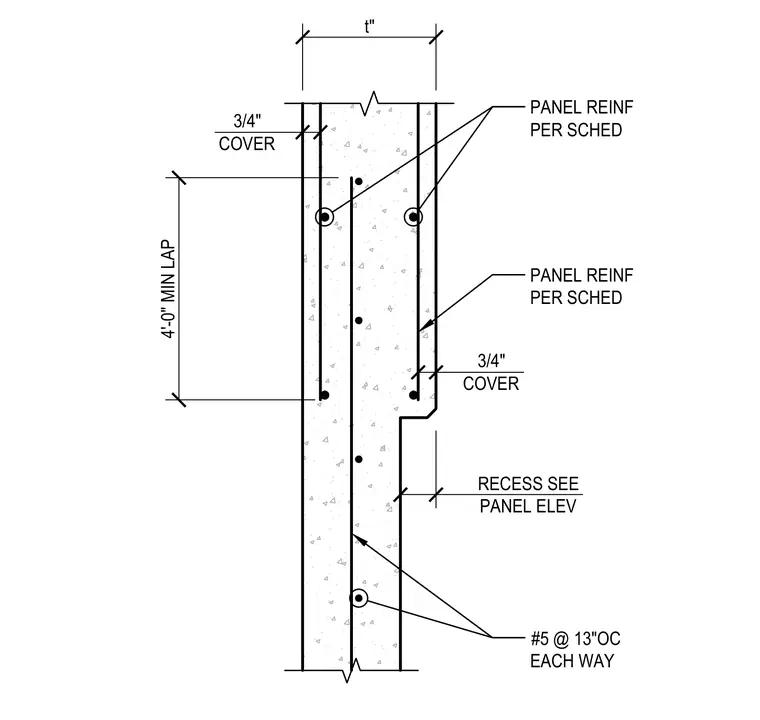

Concrete wall panel with a thickness dimension t, maintaining three-quarters of an inch concrete cover on both faces. The panel reinforcement is placed per the structural schedule, utilizing number five reinforcing bars spaced at thirteen inches on center each way. A minimum four-foot lap splice is detailed for the reinforcement. A panel recess is located per the panel elevation.
4'-0" MIN LAP RECESS SEE PANEL ELEV t" PANEL REINF PER SCHED 3/4" COVER PANEL REINF PER SCHED #5 @ 13"OC EACH WAY 3/4" COVER
