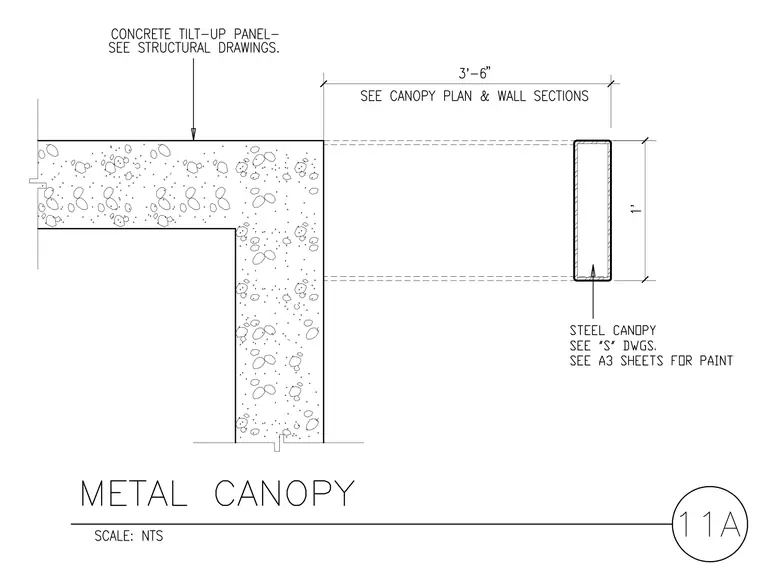

A steel canopy projects three feet six inches from a concrete tilt-up panel. The rectangular steel canopy member measures one foot in vertical dimension and is coordinated per structural drawings, with paint specifications referenced on sheet A3.
