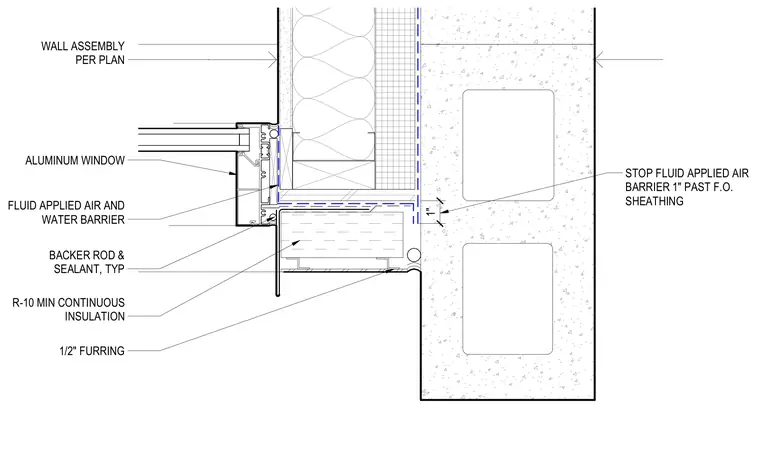

An aluminum window frame connects to a concrete masonry unit wall assembly featuring a minimum R-10 continuous insulation layer, half-inch furring, and a fluid-applied air and water barrier. A backer rod and sealant joint seals the perimeter between the window frame and the masonry return. The fluid-applied air barrier extends one inch past the framing outer sheathing.
ALUMINUM WINDOW FLUID APPLIED AIR AND WATER BARRIER BACKER ROD & SEALANT, TYP WALL ASSEMBLY PER PLAN R-10 MIN CONTINUOUS INSULATION 1/2" FURRING 1" STOP FLUID APPLIED AIR BARRIER 1" PAST F.O. SHEATHING
