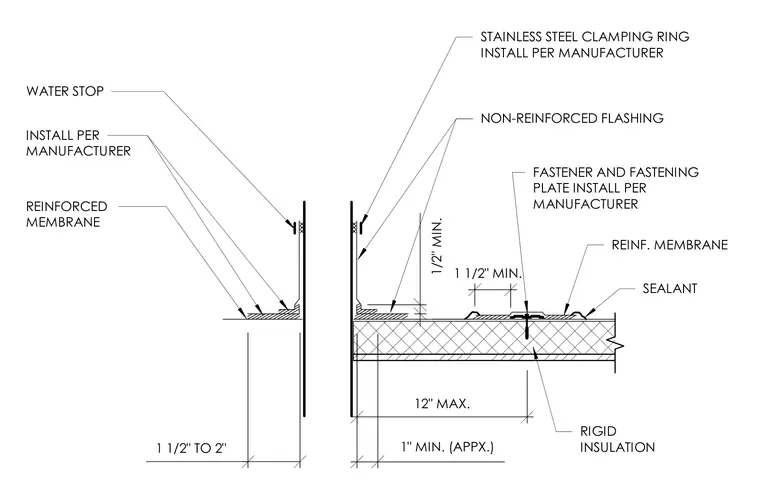

A field fabricated pipe flashing assembly is installed over rigid insulation with a non-reinforced flashing layer and a reinforced membrane water stop. The assembly is secured using fasteners and fastening plates installed per the manufacturer instructions. A stainless steel clamping ring is fitted around the pipe penetration and installed per the manufacturer specifications, with sealant applied at the membrane edges.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION
