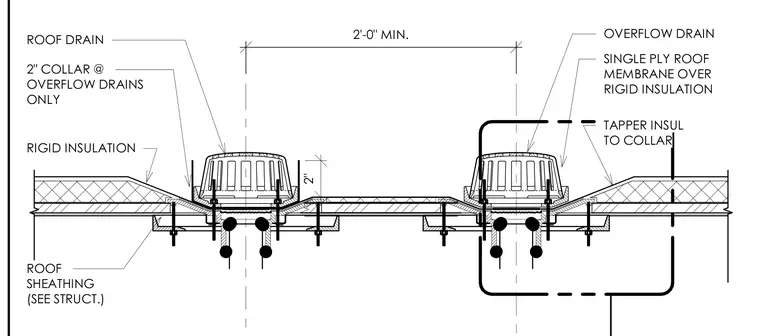

Roof drains and overflow drains are set into the roof assembly with tapered rigid insulation sloping toward the drains. A single-ply roof membrane runs continuously over the rigid insulation and terminates at the drain fixtures. The assembly is supported by roof sheathing sized per structural requirements. A two-inch collar is provided specifically at overflow drains only, with a minimum two-foot separation spacing between drains.
2'-0" MIN. 2" OVERFLOW DRAIN TAPPER INSUL TO COLLAR 2" COLLAR @ OVERFLOW DRAINS ONLY ROOF DRAIN RIGID INSULATION SINGLE PLY ROOF MEMBRANE OVER RIGID INSULATION ROOF SHEATHING (SEE STRUCT.)
