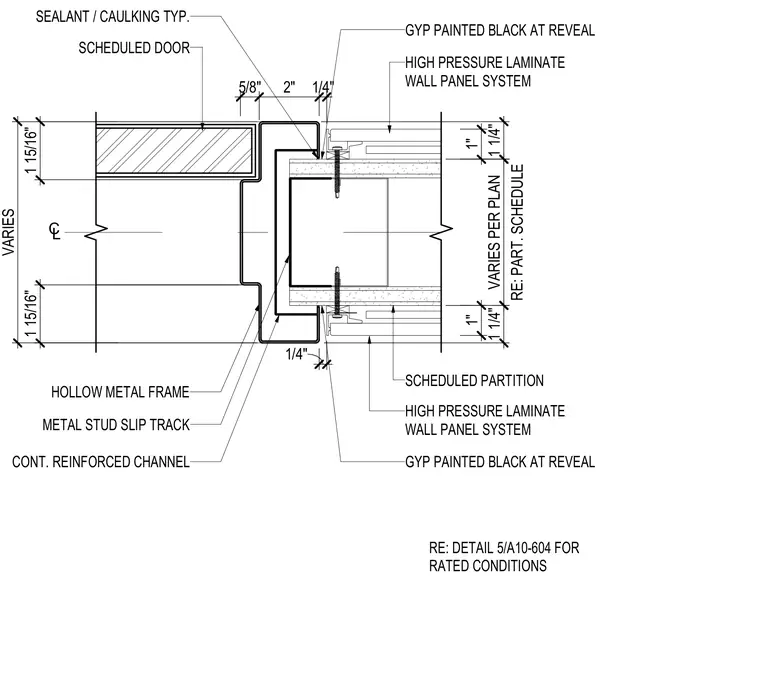

An interior door jamb frame is set within a scheduled metal stud partition finished with high-pressure laminate wall panels on both sides. The frame profile incorporates a continuous reinforced channel and slip track assembly, with gypsum board painted black at the reveals. Typical sealant and caulking are applied at the perimeter joints between the frame and adjacent wall finishes.
1 15/16" VARIES SCHEDULED PARTITION 1 1/4" 5/8" 2" 1/4" SCHEDULED DOOR 1 15/16" HIGH PRESSURE LAMINATE WALL PANEL SYSTEM 1 1/4" METAL STUD SLIP TRACK SEALANT / CAULKING TYP. HOLLOW METAL FRAME CONT. REINFORCED CHANNEL GYP PAINTED BLACK AT REVEAL HIGH PRESSURE LAMINATE WALL PANEL SYSTEM 1" 1/4" RE: PART. SCHEDULE VARIES PER PLAN 1" RE: DETAIL 5/A10-604 FOR RATED CONDITIONS GYP PAINTED BLACK AT REVEAL CL
