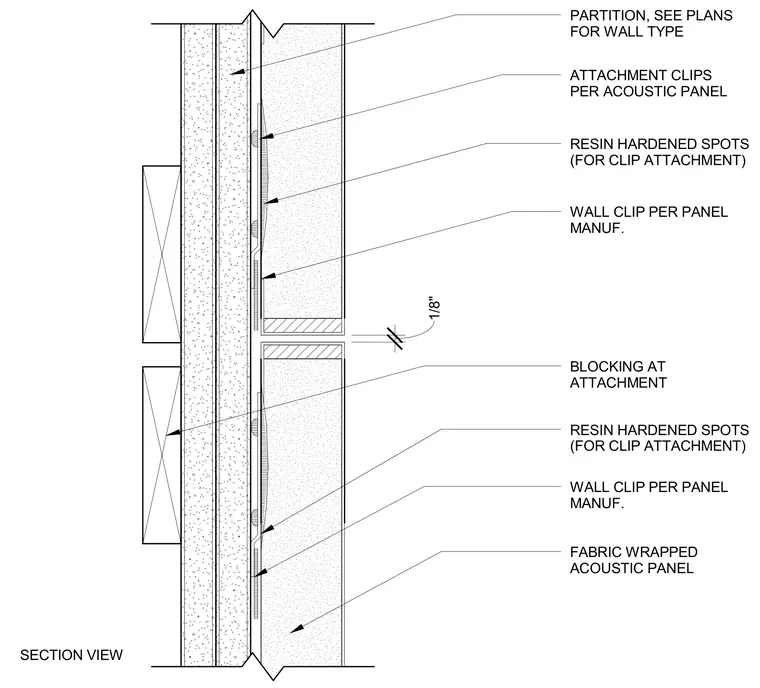

Fabric-wrapped acoustic panels attach to a partition wall using manufacturer-specified wall clips fastened to blocking. Resin-hardened spots provide reinforced backing for the clip attachment points behind the panel face. A one-eighth-inch horizontal joint separates the upper and lower acoustic panels.
1/8" RESIN HARDENED SPOTS (FOR CLIP ATTACHMENT) FABRIC WRAPPED ACOUSTIC PANEL WALL CLIP PER PANEL MANUF. RESIN HARDENED SPOTS (FOR CLIP ATTACHMENT) ATTACHMENT CLIPS PER ACOUSTIC PANEL PARTITION, SEE PLANS FOR WALL TYPE BLOCKING AT ATTACHMENT WALL CLIP PER PANEL MANUF. SECTION VIEW
