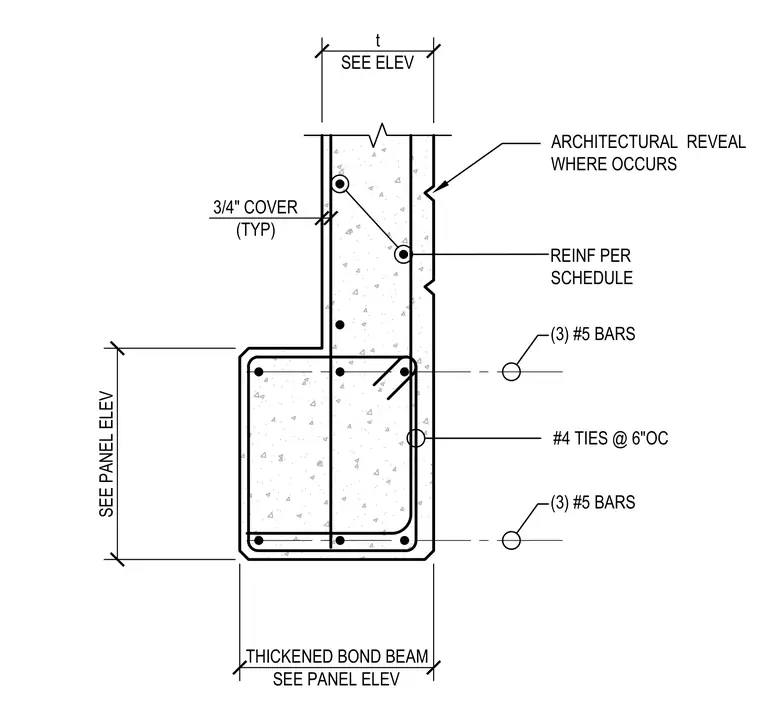

This concrete wall panel detail shows a thickened bond beam reinforced with three number five bars at the top and bottom. Number four ties spaced at six inches on center enclose the bond beam reinforcement. The wall panel incorporates additional reinforcement per schedule and features architectural reveals where indicated. A standard three-quarter-inch concrete cover is maintained throughout the assembly.
t SEE ELEV THICKENED BOND BEAM SEE PANEL ELEV SEE PANEL ELEV (3) #5 BARS (3) #5 BARS REINF PER SCHEDULE 3/4" COVER (TYP) #4 TIES @ 6"OC ARCHITECTURAL REVEAL WHERE OCCURS
