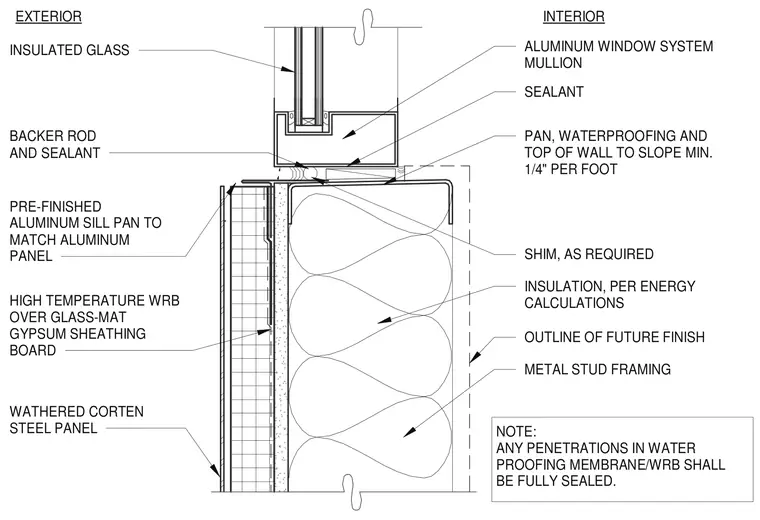

An aluminum window system mullion rests on shims and a pre-finished aluminum sill pan above a weathered Corten steel panel wall. The wall assembly consists of metal stud framing filled with insulation per energy calculations, faced with glass-mat gypsum sheathing board and a high-temperature weather-resistive barrier. A waterproofing pan is sloped a minimum of 1/4 inch per foot at the top of the wall below the storefront. Backer rod and sealant close the exterior joint beneath the mullion, while any penetrations in the waterproofing membrane or weather-resistive barrier must be fully sealed.
BACKER ROD AND SEALANT HIGH TEMPERATURE WRB OVER GLASS-MAT GYPSUM SHEATHING BOARD INSULATED GLASS ALUMINUM WINDOW SYSTEM MULLION SEALANT SHIM, AS REQUIRED OUTLINE OF FUTURE FINISH METAL STUD FRAMING INTERIOR EXTERIOR PRE-FINISHED ALUMINUM SILL PAN TO MATCH ALUMINUM PANEL INSULATION, PER ENERGY CALCULATIONS WATHERED CORTEN STEEL PANEL PAN, WATERPROOFING AND TOP OF WALL TO SLOPE MIN. 1/4" PER FOOT NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED.
